Seamless family living
The Havana seamlessly combines practical family living with all the good things in life. Including a Children’s Activity and generous Home Theatre, this architecturally designed home has the space to keep family and friends entertained. Enjoy a modern lifestyle with an open plan living area designed to be the hub of the home. With a Gourmet Kitchen and a seamless transition onto the Alfresco Cabana, this is the perfect space for the family to come together and relax.

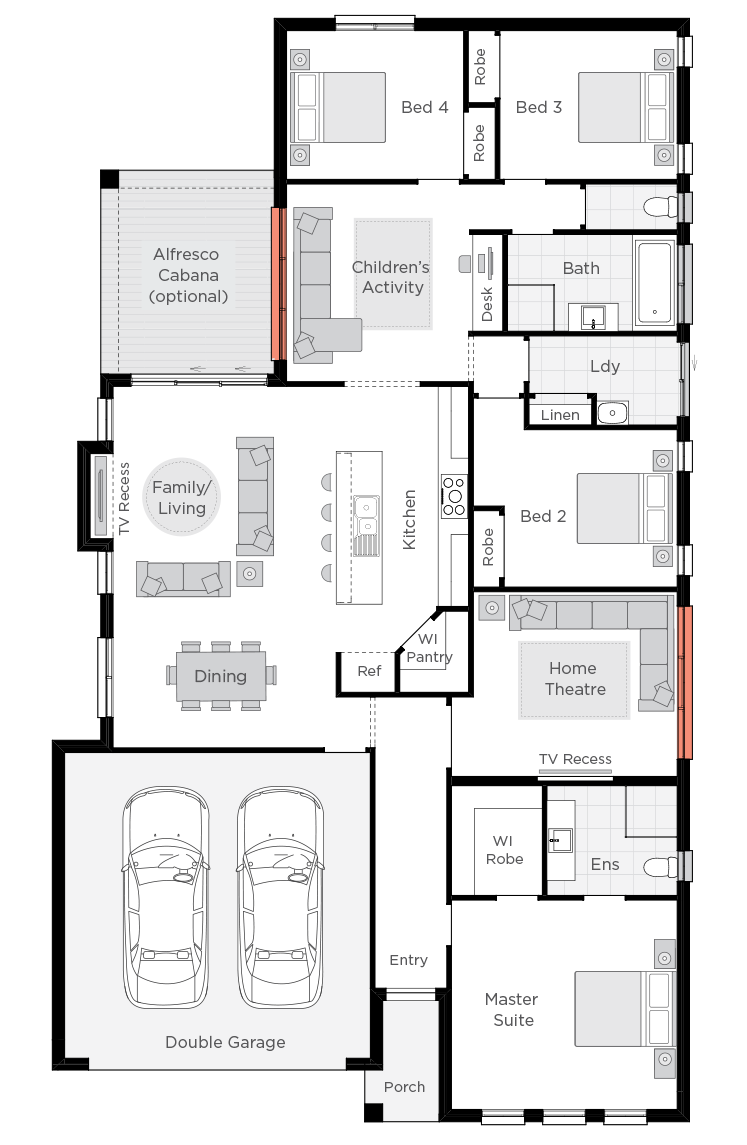

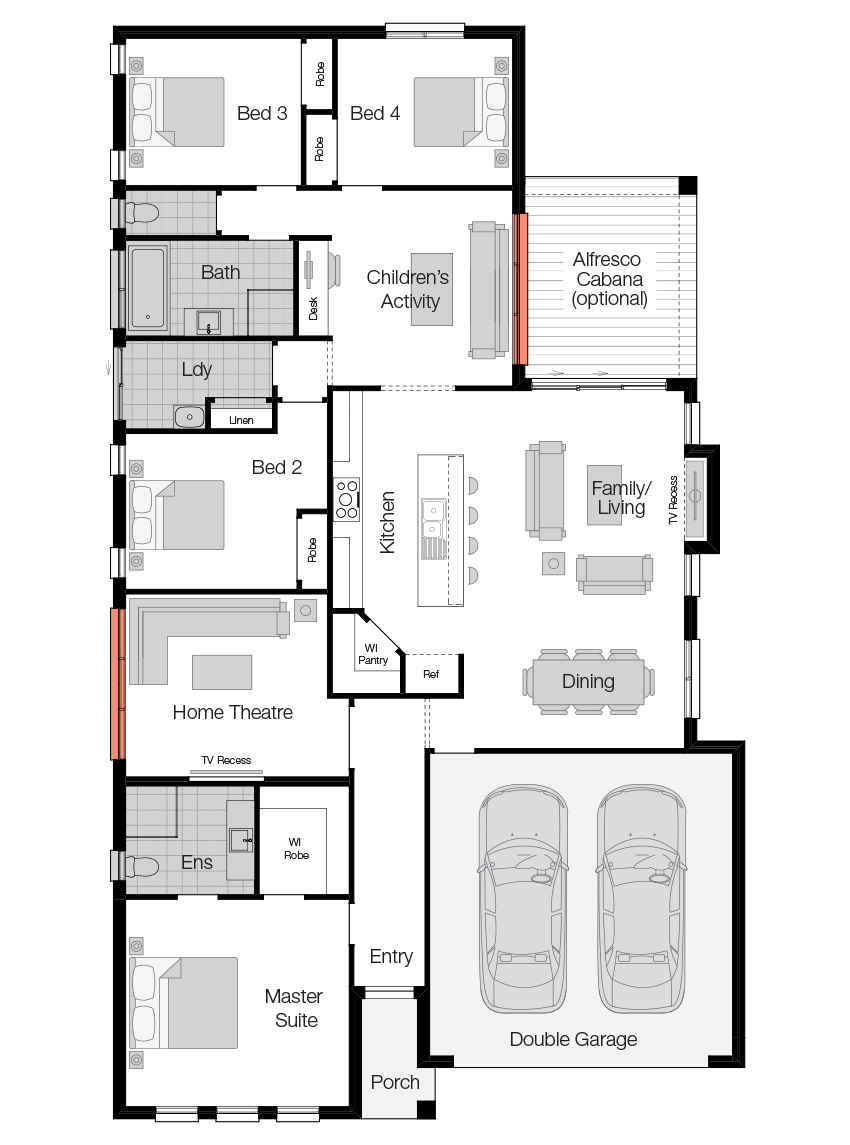

Enlarge floor plan

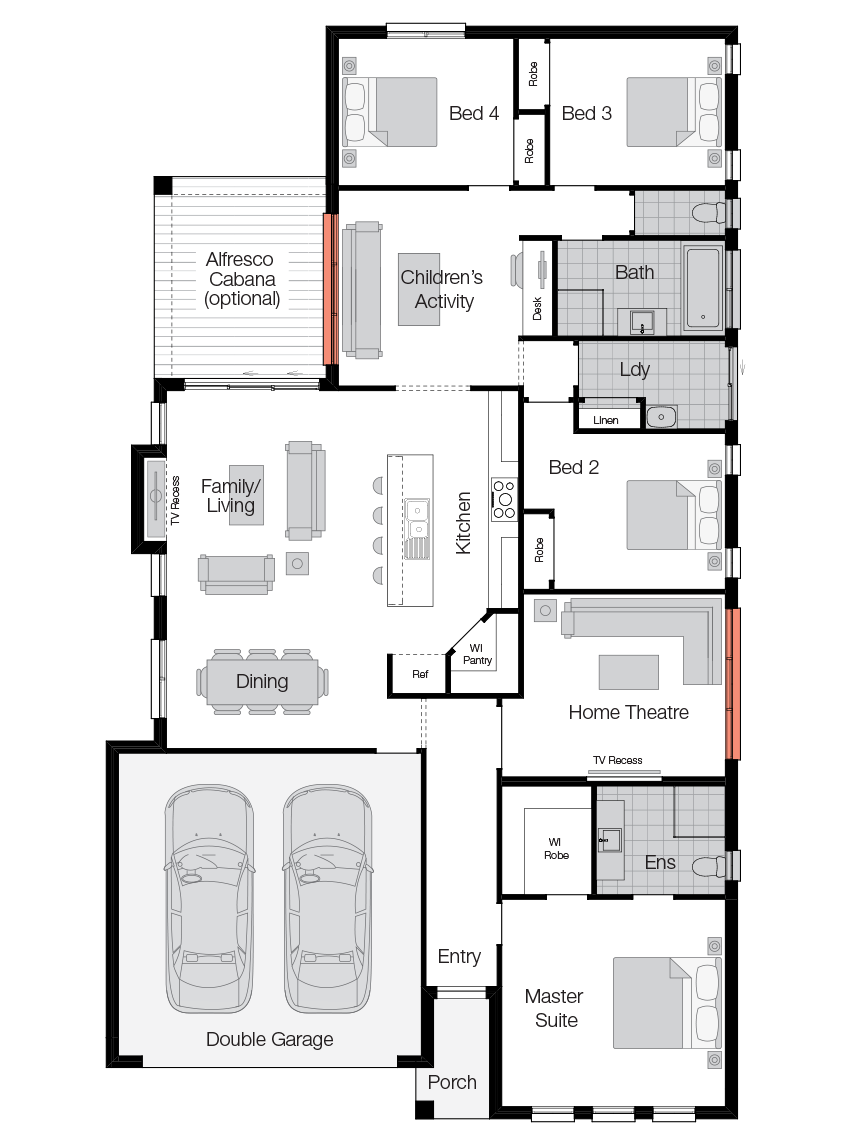

Flip floor plan
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Some options shown are only available if other additional options are also purchased and may not be available as a standalone item. Please check with your Building & Design Consultant for details. Total (m²) area does not include alfresco if optional.
4
Bed
2
Bath
2
Car
1
Storey
Block Width
15.50m
House Width
12.50m
House Length
21.65m
Total
228.15m²
Room Dimensions
Family/Living/Dining
4.4 x 7.1
Master Suite
4.4 x 4.1
Bed 2
3.4 x 3.1
Bed 3
3.5 x 2.9
Bed 4
3.5 x 2.9
Home Theatre
4.0 x 3.6
Children's Activity
3.6 x 3.9
Alfresco Cabana (optional)
3.4 x 4.0
Garage
6.0 x 6.0
Additional Features
- Home Theatre
- TV Recesses
- Children's Activity
- Built-In Desk
- Two-Way Bathroom Layout
- Walk-In Pantry
- Walk-In Robe
- Architectural Window
x
Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Please refer to our current price list and specifications for façade finishes allowed in published price.
Enquiry
Please complete the enquiry form and someone from our team will be in contact within 24 hours.
Alternatively you can give a building and design consultant a call on
1300 595 050.
Inclusions
White melamine cupboard internal finish
Overhead cupboards adjacent to rangehood and above fridge space
Melamine cupboards with matt or sheen finish
Selection of quality Kitchen cabinet handles
20mm engineered stone from selected range/s to all Kitchen benchtops. (Including Butler’s pantry if applicable)
Clark Polar Double Overmount sink
Mizu Drift MKII Gooseneck Sink Mixer Chrome
Ceramic tiled splashback from Builder’s Range
Microwave shelf with single power point
Fisher & Paykel 60cm Built-In Oven (OB60SC7LEB1)
Fisher & Paykel 60cm Electric Cooktop (CE604DTB1)
Fisher & Paykel 60cm Wall Chimney Pyramid Rangehood (HC60PLX4)
Fisher & Paykel 60cm stainless steel Freestanding Dishwasher (DW60FC1X1)
Rheem 250 litre Electric hot water unit
Joinery made built-in wardrobes with top shelf and hanging rail
Linen cupboard with full shelving
42x12 Bevelled MDF architraves and 67x12 Bevelled MDF skirting with paint finish
2400mm high ceiling heights
55mm classic cove cornice throughout
2040mm high flush panel internal swinging doors throughout with paint finish
Lockwood lever door handles throughout
Cushioned door stops
Taubmans ‘Endure’ to all internal walls –3 coat system
Flat acrylic paint to ceilings
Laundry - 600mm tiled splashback behind tub
Laundry - Base 42L laundry drop in tub with concealed bypass
Laundry - Base Sink Mixer MKII 6 star
Laundry - Ceramic floor tiles from Builder’s Range, 100mm skirting tile
TV connection point, 1 to Living and 1 to Home Theatre (design specific)
Single phase meter box
Clipsal Iconic power point and light switches
Hard wired smoke detectors
Actron 9.5KW reverse cycle heat pump
2x double power points to Master Suite
1x double power point to all other bedrooms
1x light point to each room
5x single power points
Exhaust fans above all showers & to internal WC & laundry
1 x 3in1 heater/light/exhaust to each bathroom & ensuite
Base acrylic 1650 bath in tiled hob
Mizu Drift polished chrome mixers
Posh Domaine close coupled rimless toilet
Joinery made melamine vanity unit with 20mm Smartstone Essentials Range benchtop & The Gap semi inset basin
Mizu drift polished chrome single towel rail and toilet roll holder
Polished edge vanity mirrors directly on top of vanity top to match the height of shower screens
Ceramic floor and wall tiles from standard Builder’s Range. 2000mm high tiling to shower enclosures, tiling above bath hob to align with the top of the vanity
Posh Domaine 3 Function Brass Shower Rail Chrome
Your choice of Austral bricks from Homestead, Access (selected colours) orYarra range
Insulation – R2.0 batts to walls + R4.1 batts to ceilings
450mm perimeter eaves
MGP10 Pine framing to all structural components, 90x35 framing to internal and external walls. Timber composite engineered roof trusses
Double glazed aluminium windows in a choice of powder-coat colour finishes
Standard clear glazing to all aluminium windows and sliding aluminium doors with translucent glazing to Bathroom, Ensuite and WC windows
Colorbond roof, fascia and guttering in choice of colours
Corinthian ‘Madison’ PMAD 104 paint finish entry door with clear glass inserts
Lockwood Nexion Entrance Lockset
Colorbond Panel Lift door in your choice of colour with auto controller
Aluminum standard entry door frames in your choice of powder-coat colours
6 year structural warranty period
90 day maintenance period
Development and building application fees
TAS water authority application fees
HIA new home building contracts
Site soil investigation report by a geotechnical engineer
Structural engineer designed ‘S’ classification concrete slab where applicable
Site contour survey by a registered surveyor
Energy assessment report
Appointment with your personal MyChoice Design Studio, Design Consultant. They will assist in selecting your colours, finishes and electrical layout
