Comfort & a Lifestyle to Love
The Marbella is a home that offers wonderful relaxed spaces that invite you to love every moment of being in your home.
The central hub of the home will draw the family together with a stylish gourmet kitchen and open living and dining whilst the home theatre is a great additional quiet space away from the main living hub.
The bedrooms wrap around the living space offering individual space and privacy. The front positioned bed 1 is separated from the additional three bedrooms, for peace and easy relaxation at the end of the day.

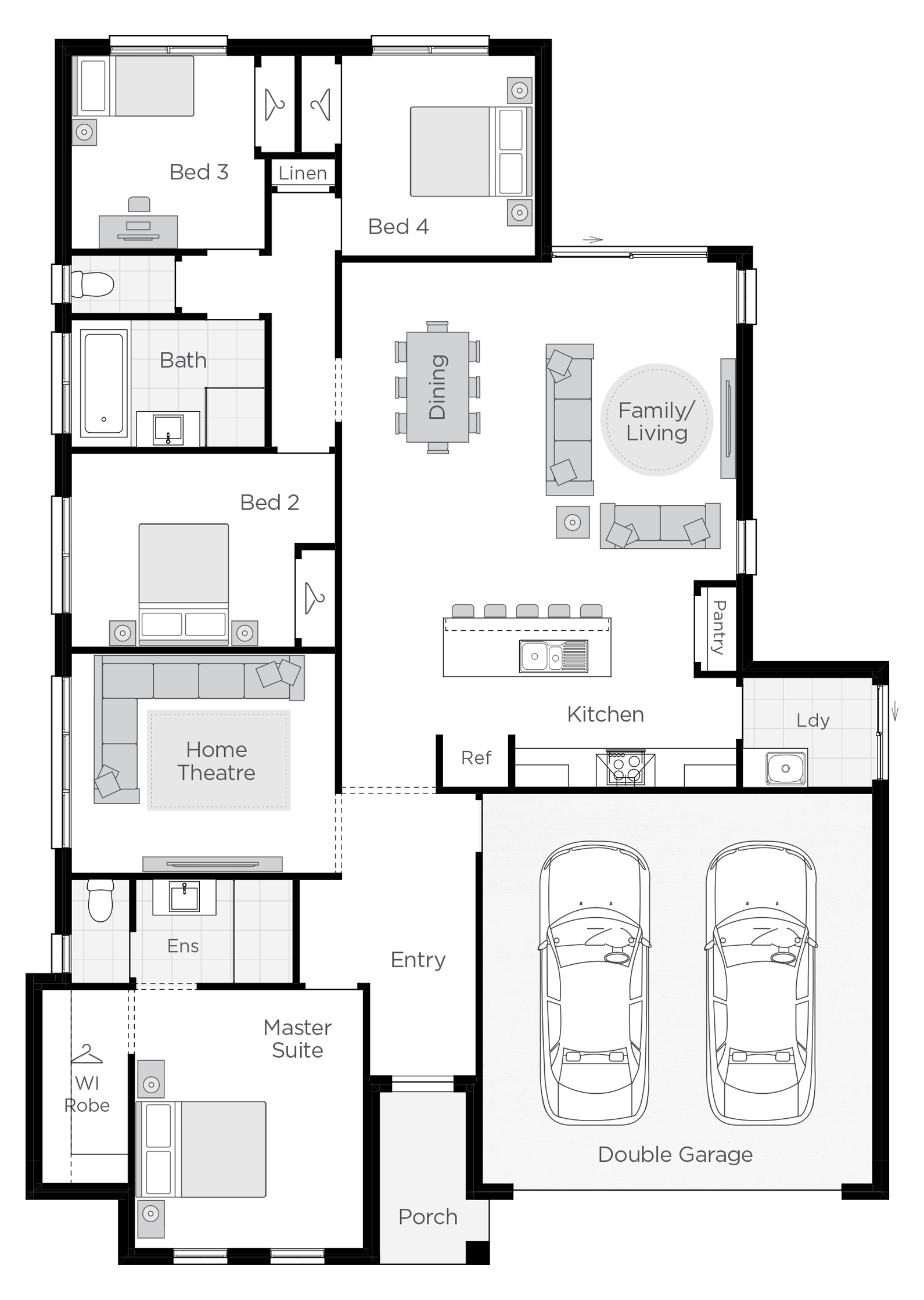

Enlarge floor plan

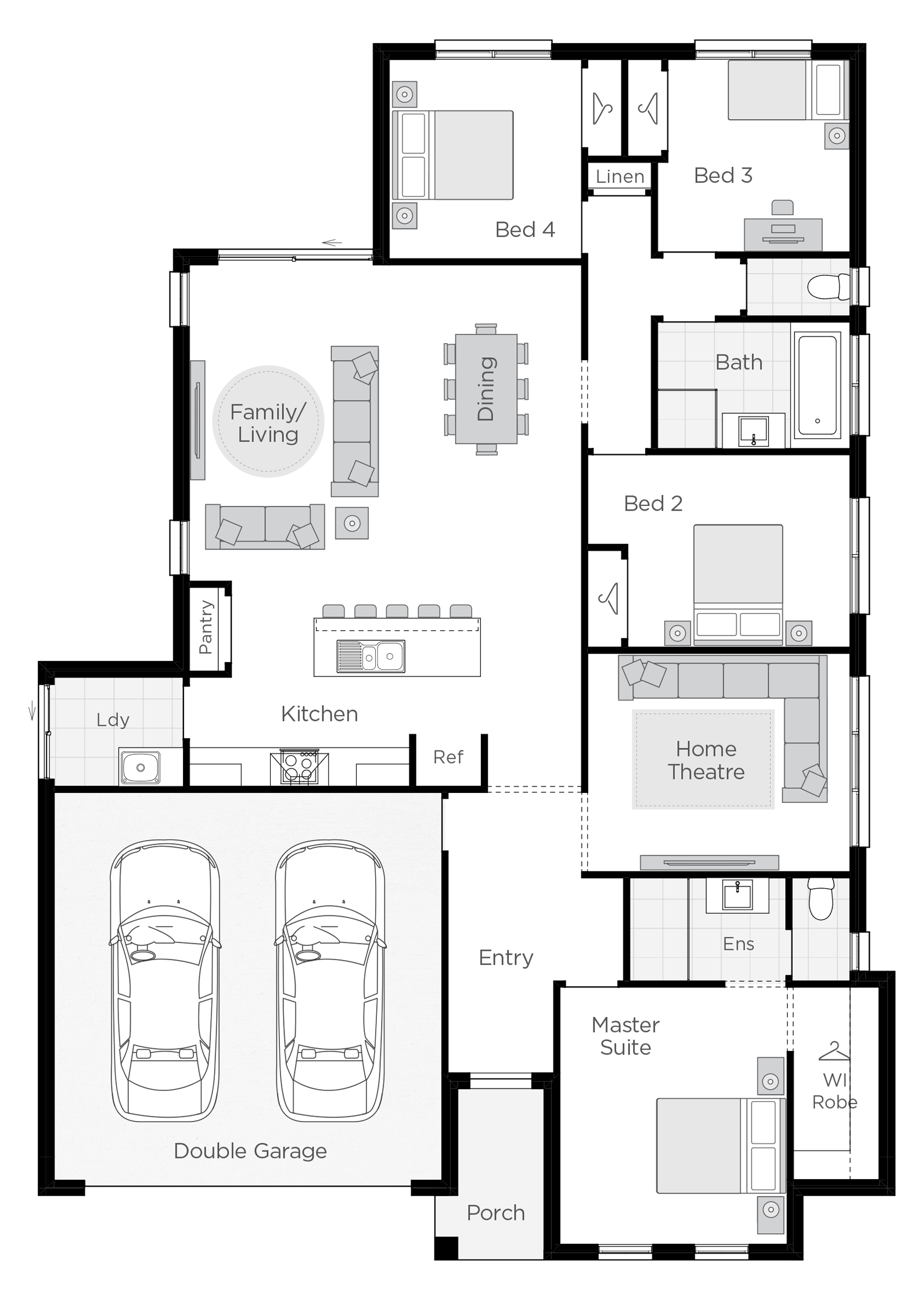

Flip floor plan
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Some options shown are only available if other additional options are also purchased and may not be available as a standalone item. Please check with your Building & Design Consultant for details. Total (m²) area does not include alfresco if optional.
4
Bed
2
Bath
2
Car
1
Storey
Block Width
16.24m
House Width
13.24m
House Length
18.80m
Total
205.14m²
Room Dimensions
Living/Dining/Kitchen
6.1 x 5.0
Home Theatre
4.1 x 3.4
Master Suite
3.5 x 4.0
Bed 2
3.4 x 3.0
Bed 3
3.0 x 3.0
Bed 4
3.0 x 3.1
Garage
6.0 x 6.0
Additional Features
- Home Theatre
- Four Bedrooms
- Double Garage
x
Enlarge floor plan
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Some options shown are only available if other additional options are also purchased and may not be available as a standalone item. Please check with your Building & Design Consultant for details. Total (m²) area does not include alfresco if optional.
4
Bed
2
Bath
2
Car
1
Storey
Block Width
16.24m
House Width
13.24m
House Length
18.80m
Total
214.85m²
Room Dimensions
Living/Dining/Kitchen
6.1 x 5.0
Home Theatre
4.1 x 3.4
Master Suite
3.5 x 4.0
Bed 2
3.4 x 3.0
Bed 3
3.0 x 3.0
Bed 4
3.0 x 3.1
Garage
6.0 x 6.0
Alfresco
3.1 x 3.2
x
![]()
Enlarge floor plan
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Some options shown are only available if other additional options are also purchased and may not be available as a standalone item. Please check with your Building & Design Consultant for details. Total (m²) area does not include alfresco if optional.
4
Bed
2
Bath
2
Car
1
Storey
Block Width
16.24m
House Width
13.24m
House Length
18.80m
Total
205.04m²
Room Dimensions
Family/Living/Dining
6.1 x 8.0
Bed 1
3.4 x 4.0
Bed 2
3.4 x 3.0
Bed 3
3.0 x 3.0
Bed 4
3.0 x 3.1
Home Theatre
4.1 x 3.4
Garage
6.0 x 6.0
Alfresco
3.1 x 3.2
x
![]()
Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Please refer to our current price list and specifications for façade finishes allowed in published price.
Enquiry
Please complete the enquiry form and someone from our team will be in contact within 24 hours.
Alternatively you can give a building and design consultant a call on
1300 595 050.
Inclusions
White melamine cupboard internal finish
Melamine cupboards with matt finish
Selection of quality kitchen cabinet handles
Laminate benchtops with 35mm pencil round edge
Posh Solus MkIII 1.3 end bowl overmount sink
Mizu Drift sink mixer – polished chrome
Ceramic tiled splashback from Builder’s Range
Overhead cupboards adjacent to rangehood
Microwave shelf with single power point
Fisher & Paykel 60cm Built-In Oven (OB60SC7LEB1)
Fisher & Paykel 60cm Electric Cooktop (CE604DTB1)
Fisher & Paykel 60cm Wall Chimney Pyramid Rangehood (HC60PLX4)
Fisher & Paykel 60cm stainless steel Freestanding Dishwasher (DW60FC1X1)
Rheem 250 litre Electric hot water unit
Joinery made built-in wardrobes with top shelf and hanging rail
Linen cupboard with full shelving
42x12mm Bevelled MDF architraves and 67x12 Bevelled MDF skirting with paint finish
2400mm high ceiling heights
55mm classic cove cornice throughout
2040mm high flush panel internal swinging doors throughout with paint finish
Lockwood door handles throughout
Cushioned door stops
Taubmans ‘Endure’ to all internal walls – 3 coat system
Flat acrylic paint to ceilings
TV connection point: 1 to Living
Single phase meter box
Clipsal Iconic power point and light switches
Hard wired smoke detectors
Actron 8.0KW reverse cycle heat pump
2x double power points to Master Suite
1x double power point to all other bedrooms
1x light point to each room
5x single power points
Exhaust fans above all showers & to internal WC & laundry
1 x 3in1 heater/light/exhaust to each bathroom & ensuite
Base acrylic 1650 bath in tiled hob
Mizu Drift polished chrome mixers
Posh Domaine close coupled rimless toilet
Tiled shower base with Builder’s Range floor tiles
Joinery made melamine vanity unit and Gap semi inset basin
Mizu Drift Single Towel Rail and Straight Toilet Roll Holder
Polished edge vanity mirror directly on top of vanity top to match the height of shower screens
Ceramic floor and wall tiles from standard Builder’s Range. 2000mm high tiling to shower enclosures, tiling above bath hob to align with the top of the vanity.
Your choice of Austral bricks from Homestead, Access (Selected Colours) or Yarra range
MGP10 Pine framing to all structural components, 90x35 framing to internal and external walls. Timber composite engineered roof trusses
450mm perimeter eaves
Double Glazed aluminium windows in a choice of powder-coat colour finishes
Standard clear glazing to all aluminium windows and sliding aluminium doors with translucent glazing to Bathroom, Ensuite and WC windows
Colorbond roof, fascia and guttering in choice of colours
Insulation - R2.0 batts to walls + R4.1 batts to ceilings
6 year structural warranty period
90 day maintenance period
Built by qualified tradespeople
Development and building application fees
TAS water authority application fees
HIA new home building contract
Site soil investigation report by a geotechnical engineer
Structural engineer designed ‘S’ classification concrete slab where applicable
Site contour survey by a registered surveyor
Energy assessment report
Appointment with your personal MyChoice Design Studio, Design Consultant. They will assist in selecting your colours, finishes and electrical layout
Corinthian ‘Madison’ PMAD 104 paint finish entry door with clear glass inserts
Lockwood Symmetry Entrance Leverset
Colorbond sectional panel lift door in your choice of colour with auto controller
Aluminum standard entry door frames in your choice of powder-coat colours
